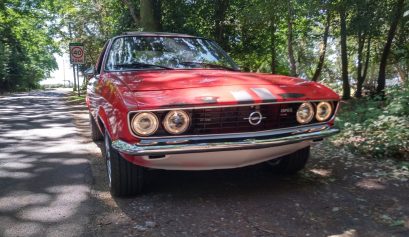

Time for the first shakedown!

May 22, 2020

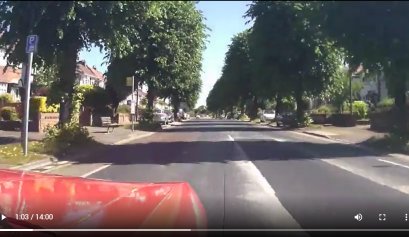

Today was a big day! we finally hit the road for the first shakedown of the A series. Apart from a couple of niggles and i need a new battery as the battery doesn’t hold its charge, it was a good run around the block. The engine seems to have a nice bit of pull to it so I’m looking forward to the time when its run in and i can get it properly tuned and open it up! I need to get the temp gauge working as that not reading so I’m not to sure how hot she is…

CIH Engine

Engine all setup!

May 9, 2020

Finally, the Omex loom is all setup and everything tested and now we are all balanced and setup and ready to go. I think there will be a few little tweaks needed to the balance once we have had a run but i think its good enough for a test run! I need to sort out why it looks like the alternator is not charging the battery? could be a loose wire so that is the next thing to sort out and then we are all set for the first run out for a very long time!!!! https://www.theopelproject.com/wp-content/uploads/2020/05/The-Opel-Project.mp4

Uncategorized

Cam timing info

April 14, 2020

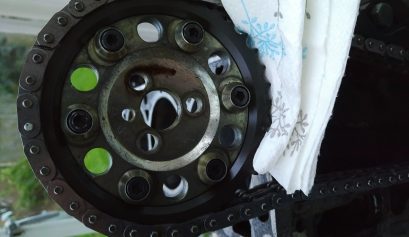

CIH Cam and Ignition Timing Originally Posted by GTJIM . . . Timing the cam is one of Opels little endearing foibles! Even the Factory Service Manuals cam be misleading as the drawing of the engine is actually WRONG in some of them – nice huh! Fortunately the picture of the crankshaft keyway position and the text is correct. The keyway in the crankshaftMUST face upwards and #4 cylinder be at Top Dead Centre with the camshaft turned so that the valves for #4 cylinder are closed ( the cut outs in the cam for access to the head bolts will be in the correct position as this setting). Once the cam wheel is…

CIH Engine

OMEX 600 ECU Fitted to Opel Manta

February 1, 2020

This is going to be a bit of an ongoing post as i have started to prepare to fit the Omex 600 System to the Opel Manta and thought it would be good to update this post as i go along with diagrams, setup etc.. in case anyone else is looking to do the same thing as its quite hard to get much info. So i bought the Omex 600 to replace the Webcon Alpha system as they no longer make or support it 🙁 so long term it would have to go at some point as it would just…

Lights

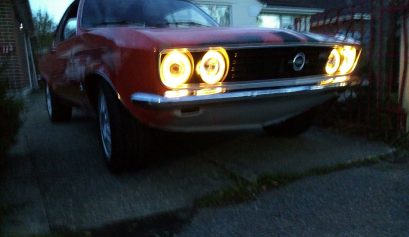

Opel Manta Halo Eye Lights

February 1, 2020

I just had to post this image of the Opel with the Halo Eye working at dusk just so you can see how they really suit the car 🙂 There is a previous post that explains how i setup the lights.

Exhaust

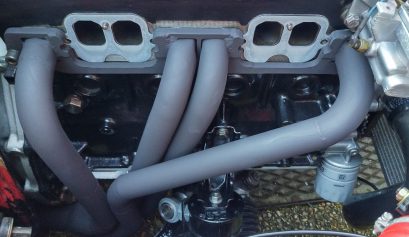

Manifold Fitted

February 1, 2020

The manifold is now back on the car and all i need to do now is connect up the system and that is the exhaust all done. I can now connect up the steering and fit the inlets and throttle bodies.

Uncategorized

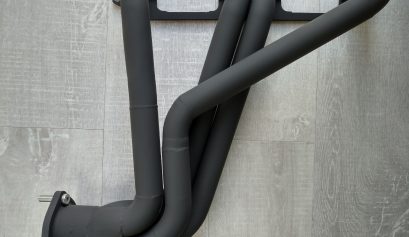

Manifold all painted and ready to go back on.

January 18, 2020

When i went to have the car tuned it was clear that there were a few issues with the manifold not seating properly so i took it off and had the face machined flat and while i was there i thought it would be a good idea to get the manifold painted at the same time. I was going to just get a can of high temp paint and do it but as usual, after a bit of reading up on the best paint i came across quite a few reviews for POR15 High Temp Heat-Resistant Paint that were very…

CIH Engine

Close, but no cigar!!

October 4, 2019

After a very long day on Wednesday taking the car up to Northampton Motorsport, we are so very close, but still not there just yet! Some good news, the car fired up first turn and ran which was great to see 🙂 It was running quite rich with the Alpha system, but that was just a base map. Troy then connected up the Omex ECU. It fired straight up and after a little adjustment to fine-tune it we were then able to run the cam in 🙂 A couple of small little things that need sorting (A little…

OPEL

As ready as we can be!

September 29, 2019

As the title says, the car is as ready as it can be for its trip to Northampton Motorsport for the initial startup and cam run in. Everything is checked as best i can so its fingers crossed when we get there. The plan is to get the engine checked and setup by Northampton Motorsport as they know their stuff so im told. Then all being ok they will get her started up and the cam run in and then setup the map so the car is ready to run in. Then if everything is all ok i will bring…

Exhaust, Steering

Steering & Exhaust finally finished

September 29, 2019

Well, it’s been a long and winding journey to get the Exhaust & Steering sorted on the Opel! Finally, after getting the steering all in and routed around the manifold as best, i could i realised that i would not be able to keep the manifold exactly as standard and would need to modify it. after a little bit of a mock-up myself, i then took it down to my local welder to get him to finish it off properly. I have to say its come out pretty good and there is hopefully enough clearance for it not to knock!…
